Vertical Ribbon Blender

1100000 INR

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Vertical Ribbon Blender Price And Quantity

Price 1100000 INR
Minimum Order Quantity 1 Set

Vertical Ribbon Blender Trade Information

FOB Port Shanghai
Payment Terms Cash in Advance (CID)
Delivery Time 60 Days
Main Export Market(s) Middle East Africa Asia

Product Description

The PerMix PVR series Vertical Ribbon Blender stands vertically same as our PNA series Conical Screw Mixer. PVR is an efficient and versatile blending machine for batch mixing of free-flowing powders. PVR series Vertical Ribbon Mixers are able to give perfect result of mixing due to the innovative design of an outer spiral type mixing element with an inner screw, rotating together in a conical shape trough allowing a complete discharge of all the mixed material without any residue.

Working Priciple

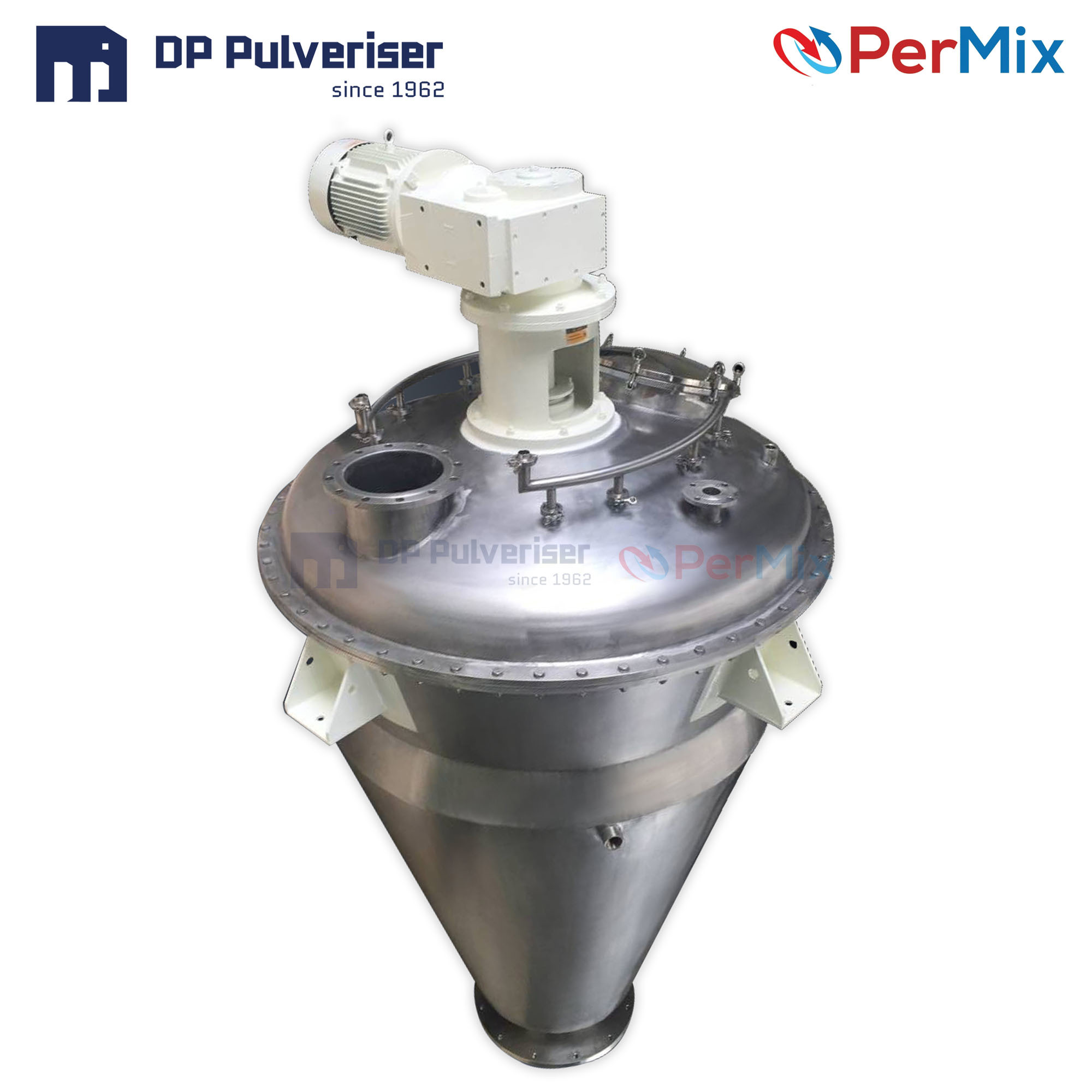

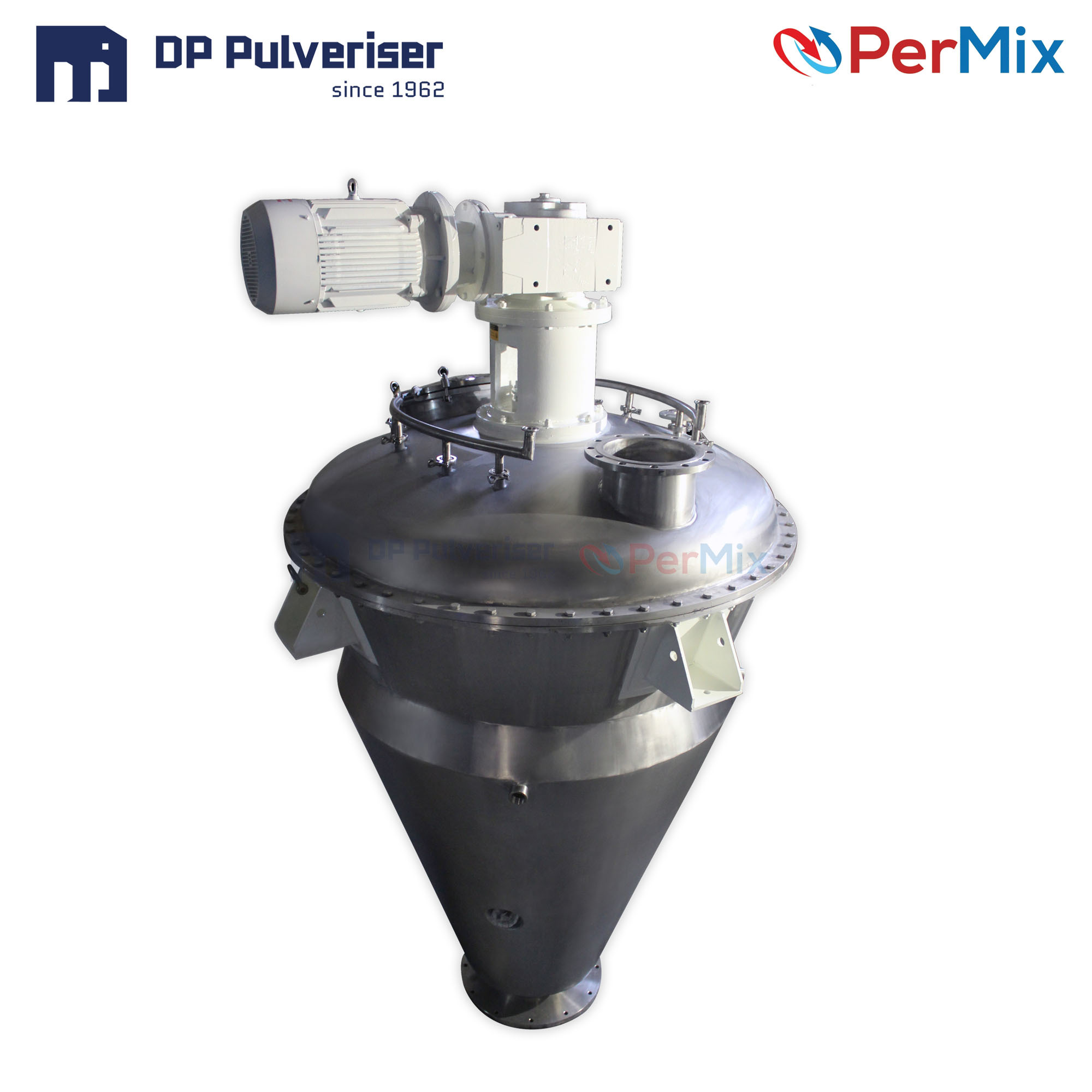

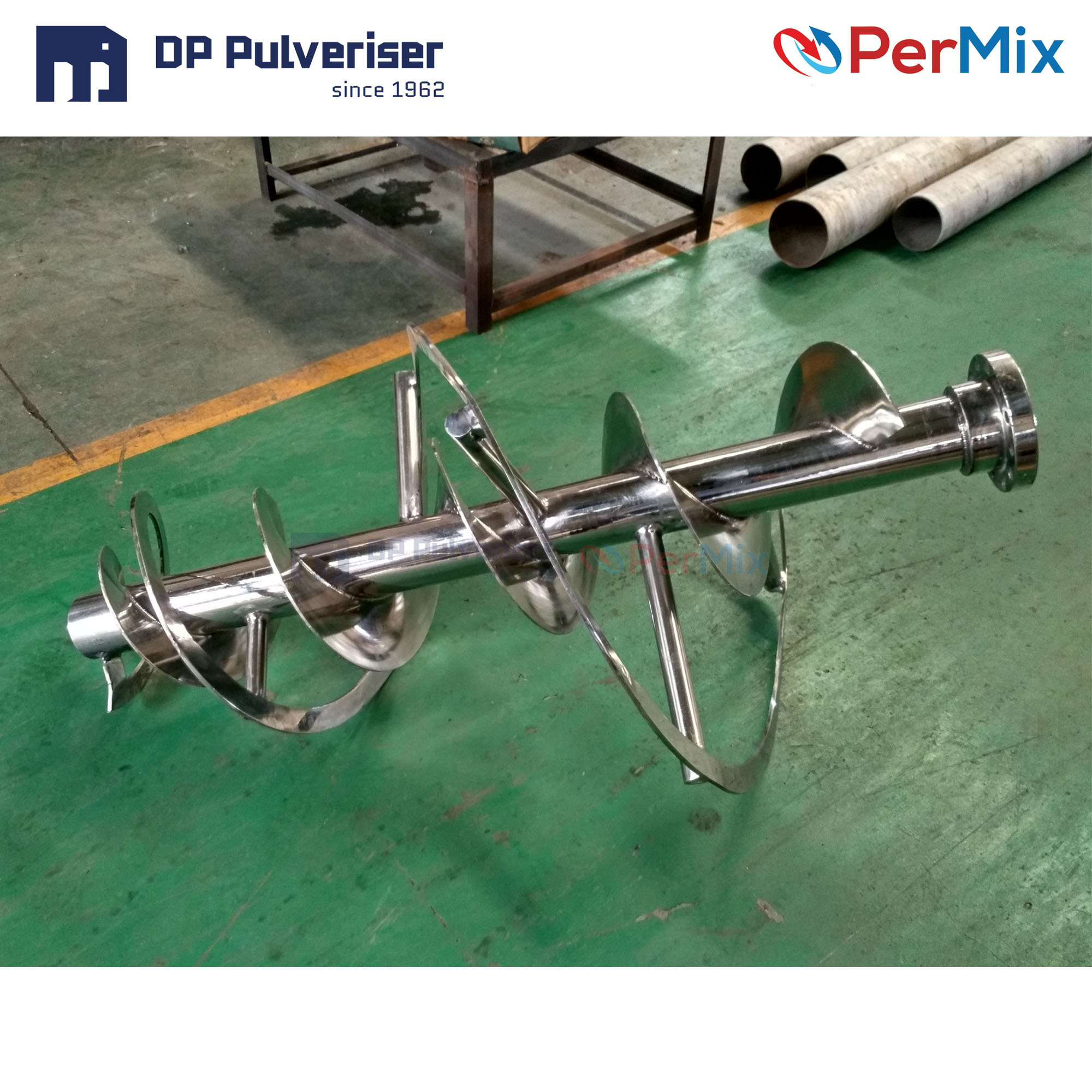

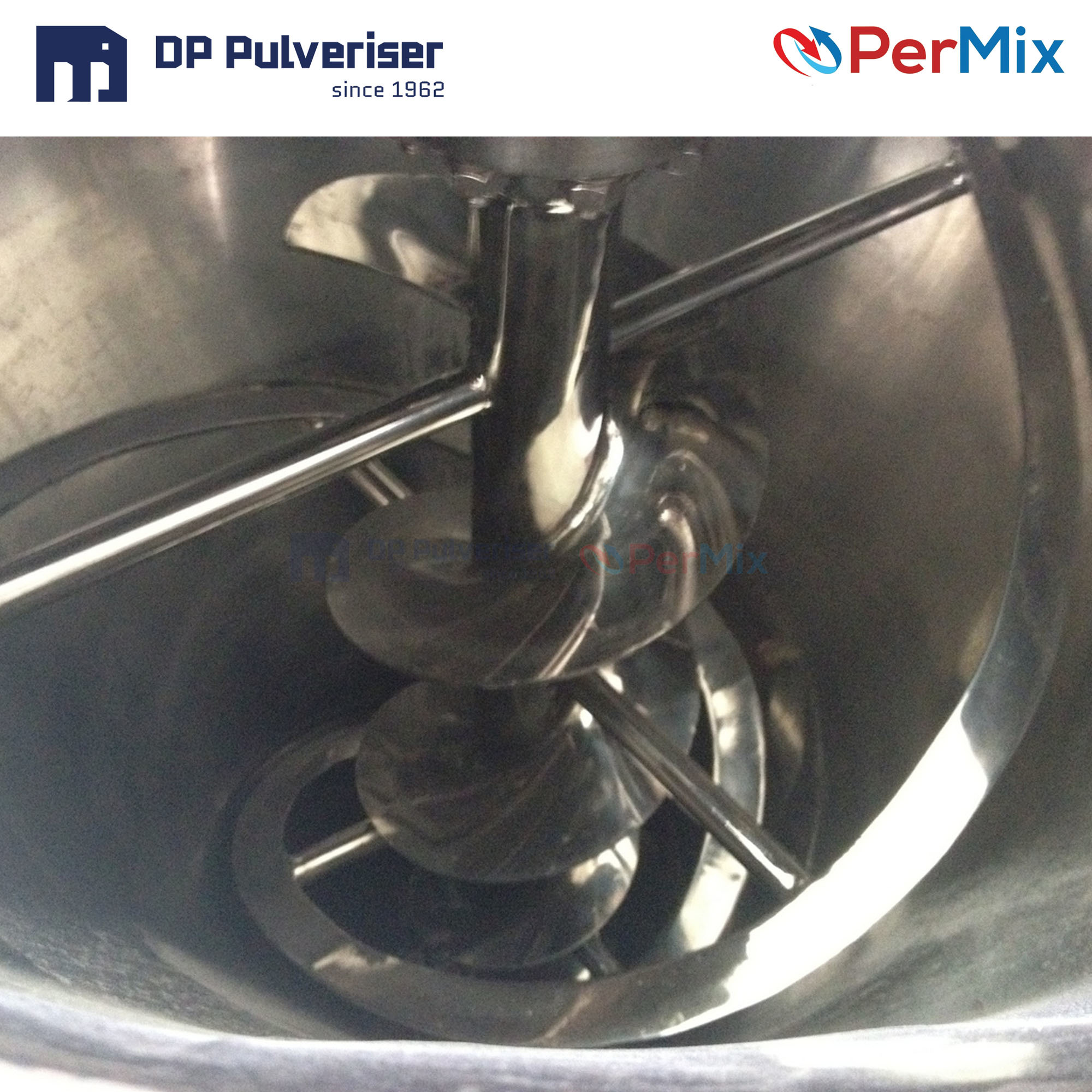

The construction of DP PerMix PVR series Vertical Ribbon Mixer is very compact: it consists of a cone vessel with the drive unit on the top and discharge valve at the bottom. In the cone vessel, there are a central tapered ribbon with very small clearance between its edge and the wall, and additionally a screw mounted on the central shaft.

The ribbon and the screw move the materials upward from the bottom to the top, where the materials then drop by gravity into the center. During this continuous operation, material particles and heat are exchanged quickly which leads to a homogeneous product.

Besides, the material particles are mixed with minimal mechanical and thermal stress, which makes this type of mixer a good solution for fragile and heat sensitive product.

Advantages

High level of accuracy with minor component ratio to be 1:100,000
Gentle mixing for sensitive materials without generation of heat
No minimal quantity is required
Full discharge with minimal residue
Easy to clean in either dry or wet way
High heat transfer rate, ideal for heating or cooling process of the powders
Chopper can be installed for intensive mixing and lump breaking

Customization
- Ribbon
We offer several types of spiral ribbon for different sizes and applications.
- Construction Material and Finish
We are able to offer our PVR Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Finish of internal and external finish can be dull polished, 180 grit polished (food grade), or mirror polished. For abrasive materials we offer hardened steel as the contact part.
- Feeding & Discharging
A variety of feeding & discharging methods can be selected by the customers.
- Drive system
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
- Heating/Cooling jacket
Jacketed trough for heating/cooling operation
- Vacuum drying & deaerating
The PVR mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
- Spray nozzle
Liquid can be added into the powder by spray nozzles on the top.
