V Shape Mixer

Product Description

V Shaped Mixer

The DP PerMix V shaped Mixer also known as Y Shaped mixer, follows a gentle high-flowing mixing process for solids/solids up to a proportion of 1:100,000. An option of using an intensifier bar to intensify the mixture and solids/liquids in powder or granulate form with different unique weights is also available. This mixer is one of the tumble mixers, the DP PerMix Double Cone Mixer being the other one. Famous for the intimate blending of dry powders, granules, and crystals that flow freely. It is distinguished by a very basic and an easy to clean design.

Applications

• Pharmaceuticals- Supplements, Active ingredients, Silica, Sugar, Tablet coating
• Chemicals- Graphite, Alumina, Inorganic powder, Dye stuff, Silica, Adhesives, Agricultural supplements, Plastic powders, Colored cement mixes, Glass ingredients, Insulation materials
• Food & Beverages- Sugar, Aspartame, Fragrance, Spice, Dextrin, Chocolate mixes
• Cosmetics & Daily Care- Baby powder, Tooth paste, Cosmetic creams, Detergents, Cleaning compounds

Operating Principle

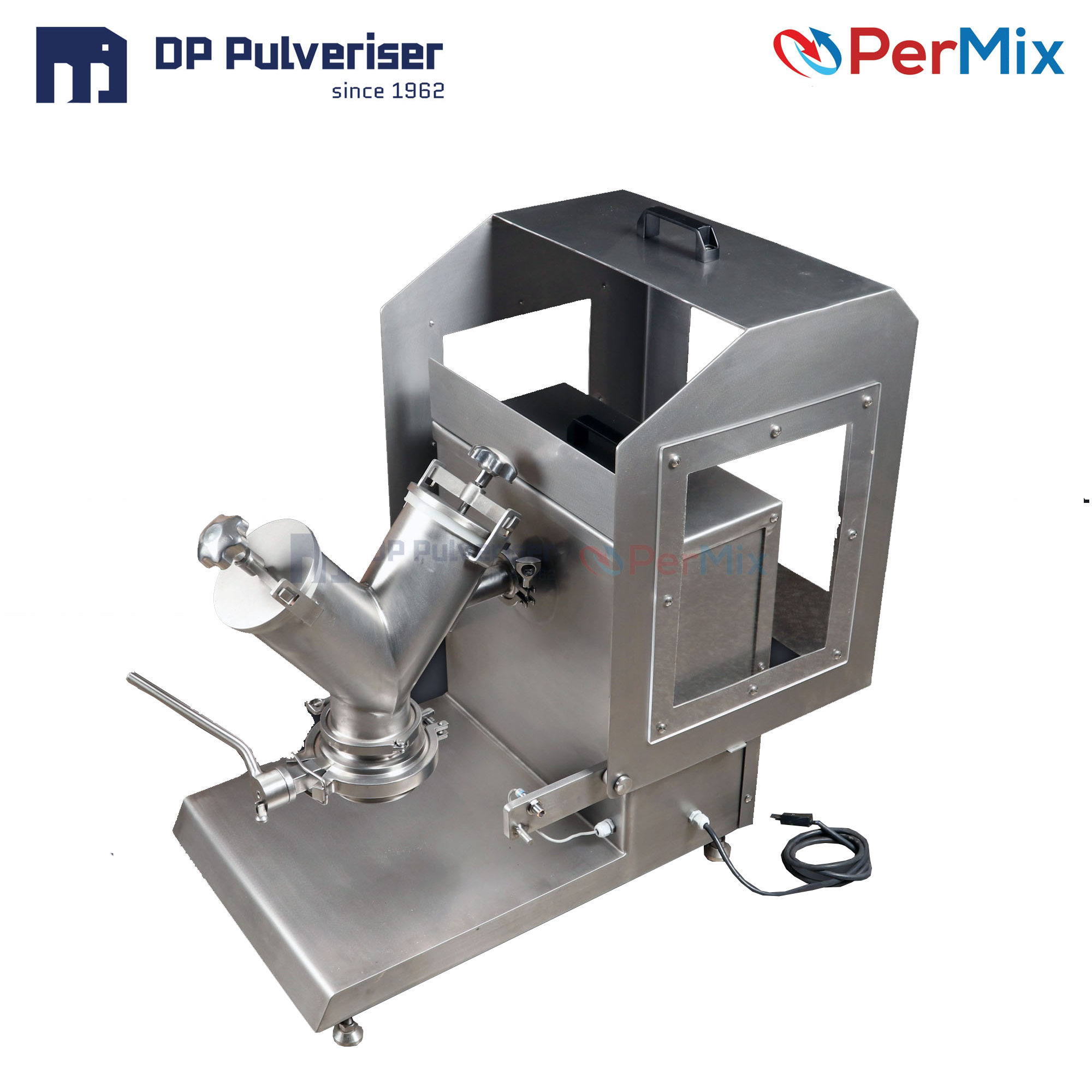

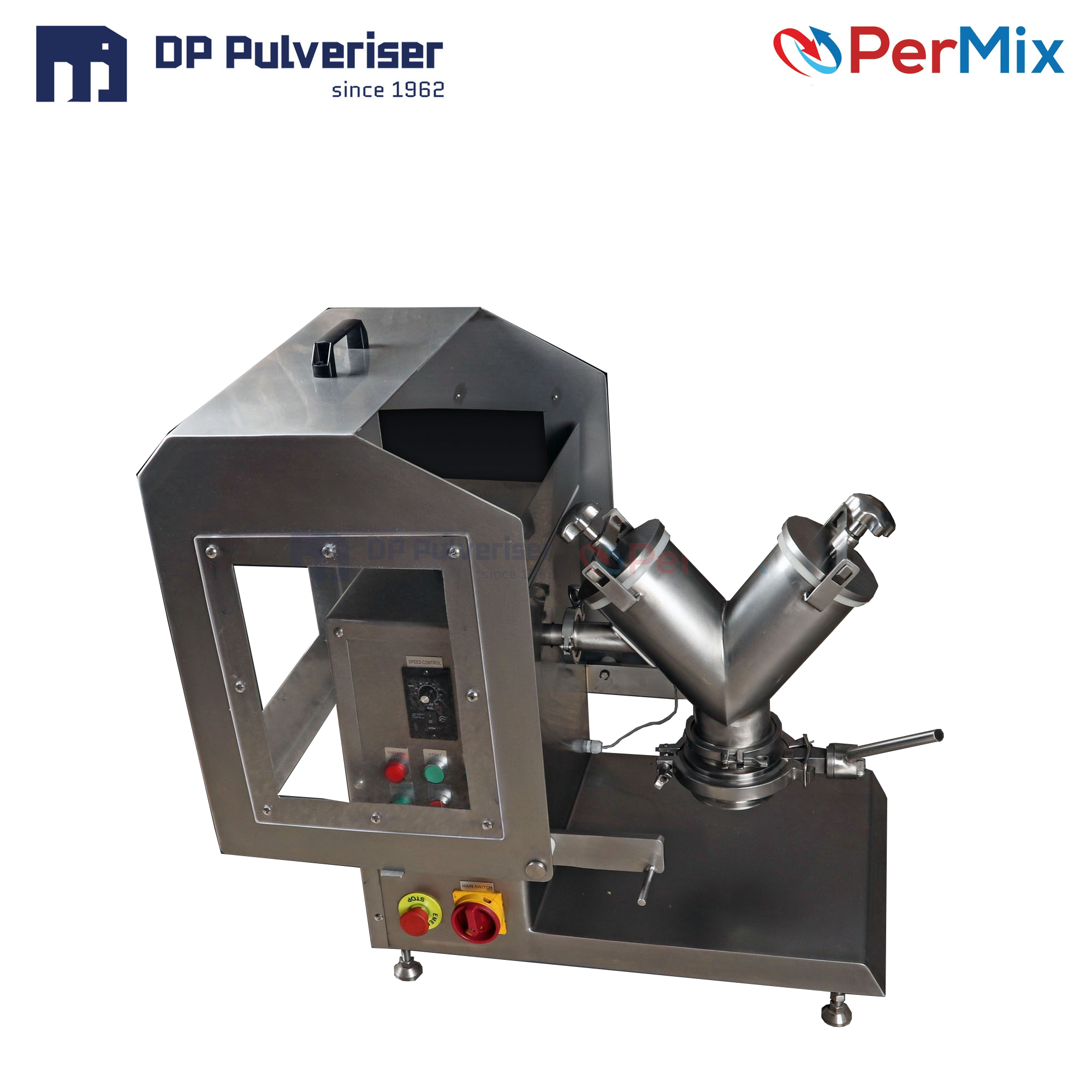

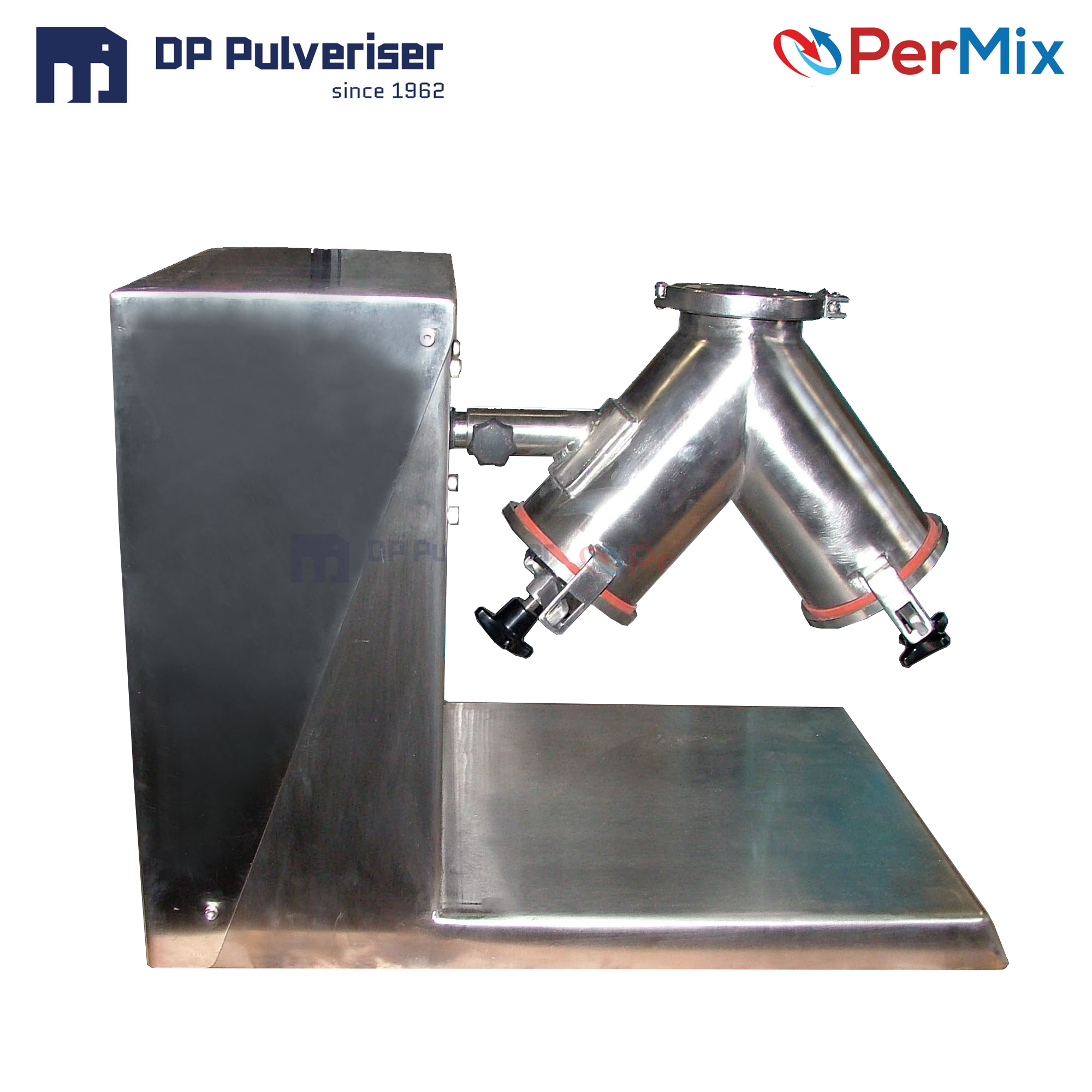

The DP PerMix PVM series V shaped Mixer has a "V" chamber made up by two cylinders. Powders and granules are fed into the V chamber either manually or by a vacuum conveyor.

A gear motor drives V chamber to roll in 360 degrees. This multi-dimensional motion makes the powders and granules inside tumbling up and down and colliding to each other all the time, and achieve uniform mixing in short time.

Features

• Simplicity of Design
• Low initial cost
• Ease of maintenance and simple operation
• Size available from 2 L lab model to 6000 L Industrial scale unit

Customization

• Internal choppers
• Vacuum/Drying execution
• Special spray unit
• Special safety fence
• Mobile trolley
